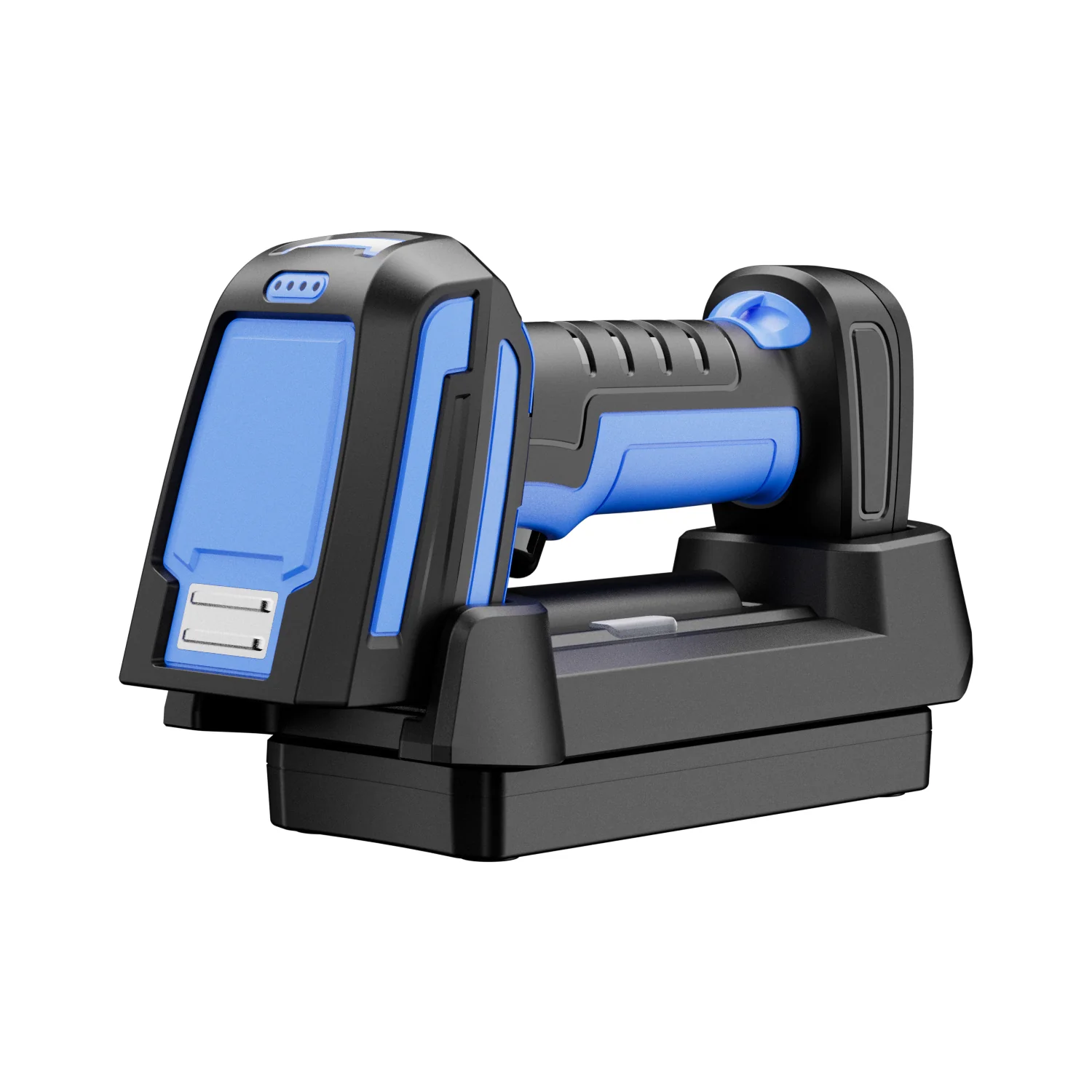

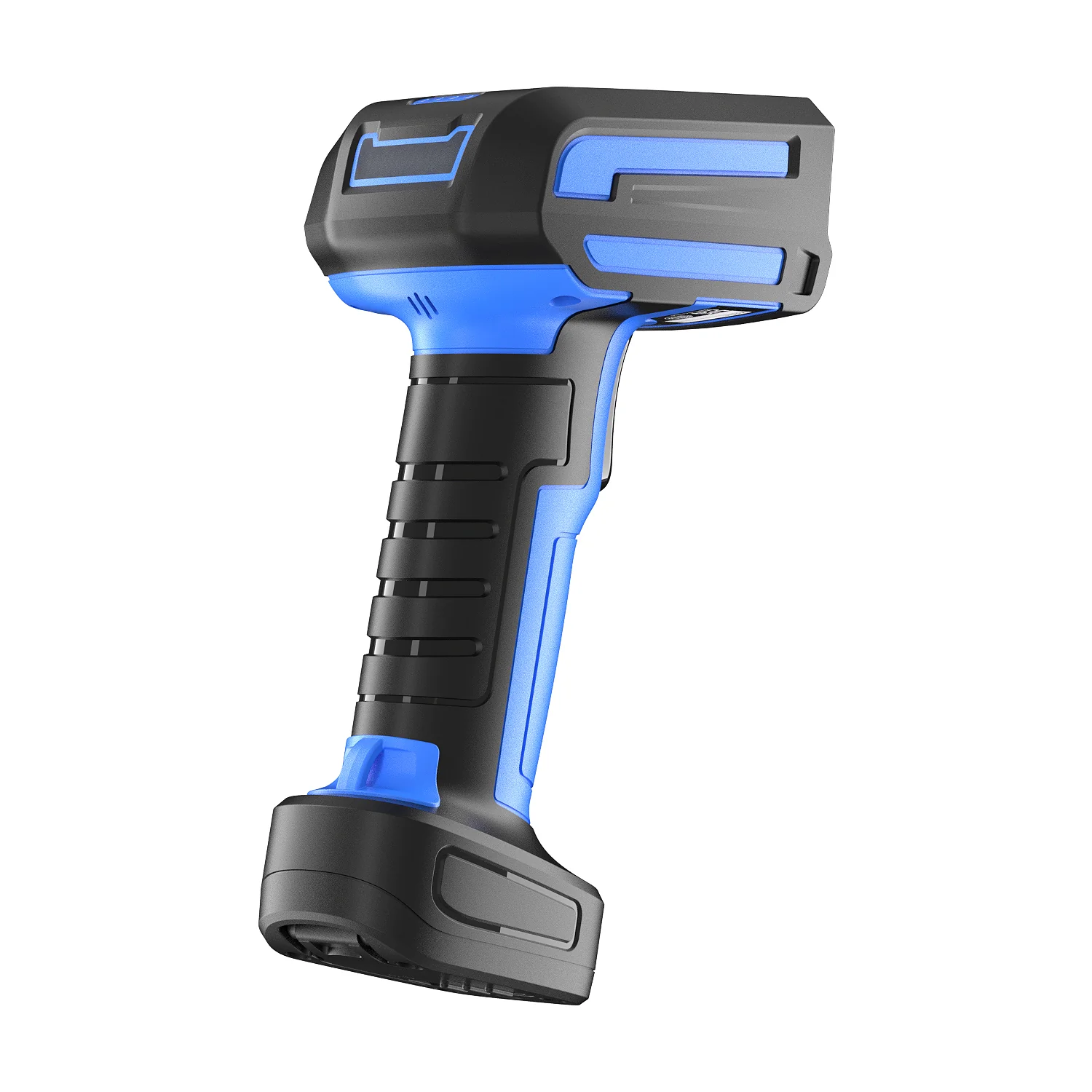

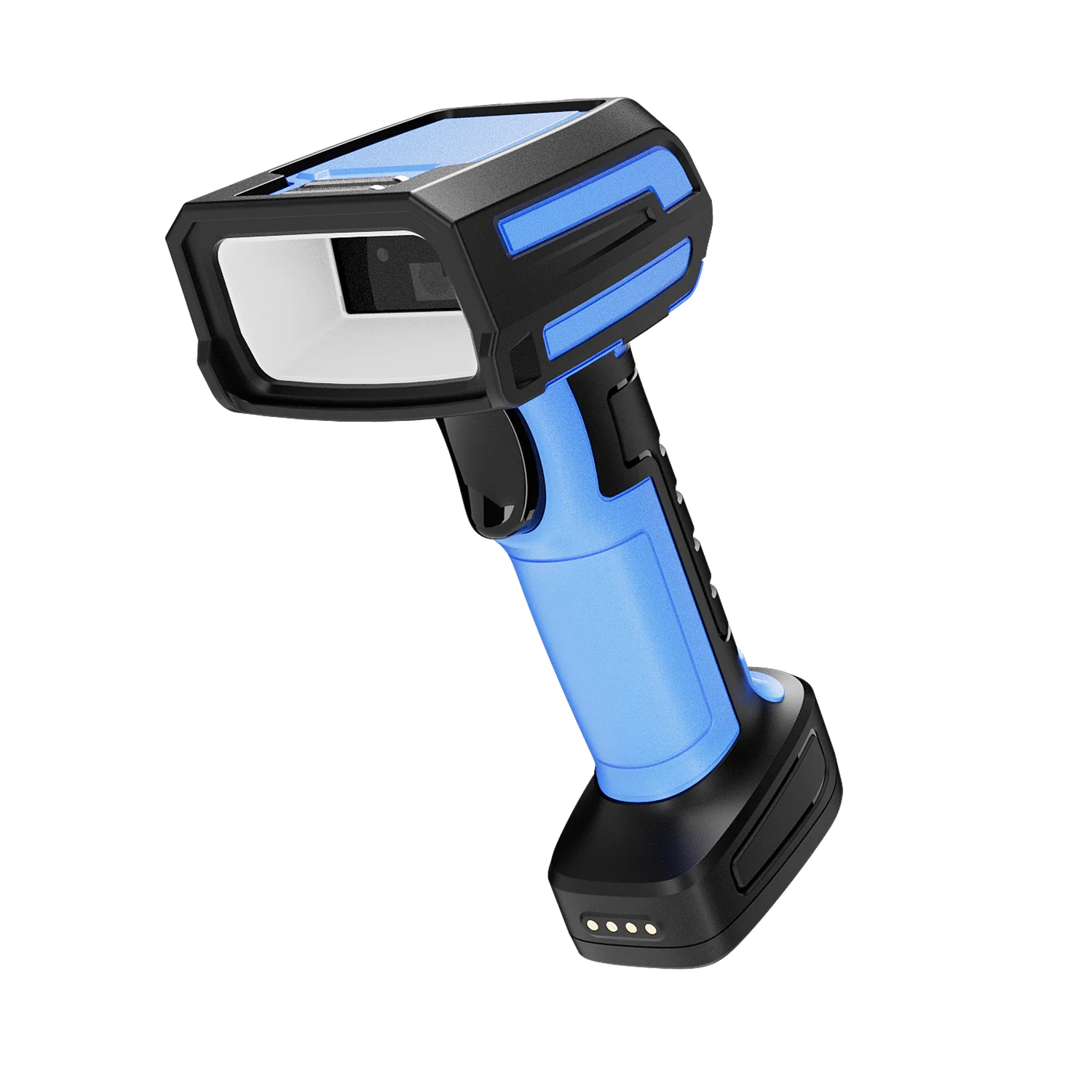

GY-80U Ultra-Rugged Industrial Barcode Scanner Wireless DPM
NETUM Ultra-Rugged Industrial Barcode Scanner Wireless DPM, 2D QR Code Scanner with Charging Stand, IP67 Waterproof and Dustproof, Support USB HID, RS232, Bluetooth Data Transmission -GY80U
About this item
- Precise DPM Barcode Scanning: The NETUM industrial barcode scanner is capable of reading a variety of challenging codes, including cutout codes on PCB boards, laser-etched codes on reflective metal surfaces, dot-peen marks on cast surfaces, engraved codes on oily surfaces, laser-etched codes on resin, and laser-engraved codes on cylindrical objects.
- IP67 Waterproof & 3M Drop-resistant: Crafted from sturdy ABS and thickened soft TPU material covering, the NETUM industrial-grade 2D barcode scanner can withstand falls from heights of up to 9.84 feet (3 meters). This scanner has passed the IP67 waterproof and dustproof test, maintaining excellent scanning performance in dusty warehouses and damp rainy work environments.
- Superior Decoding Capability: NETUM GY80U offers higher resolution (1.4 million pixels) and can scan barcodes as small as 3 mil, It can accurately scan almost all 1D, 2D, and QR codes on paper and screens, including QR-code, DataMatrix, and PDF-417. It can also read and transmit blurry, damaged, and dirty barcodes. Its superior decoding capability makes it suitable for any purpose.
- Built to Last: The NETUM industrial barcode scanner is built for all-day use and features a swappable battery design. It comes with two removable 3200mAh batteries and a charging dock. The dock allows you to charge both a spare battery and the battery inside the scanner simultaneously.
- Wide Compatibility & Extended Transmission Range: Supports three connection modes—2.4G wireless, Bluetooth, and wired. Compatible with Windows, Mac, iOS, Android, iPad OS, and Linux, catering to various scanning needs. Support USB HID (USB COM), RS232, Bluetooth (HID, SPP, BLE) data transmission.
| 1 | Optical performance | |||||||||||||||||||
| 1.1 | Resolution: | 1288 × 1088 | ||||||||||||||||||
| 1.2 | Illumination: | White Light: Direct illumination Red Light: Diffused illumination Blue Light: Polarized illumination |
||||||||||||||||||
| 1.3 | Focusing Method: | Red Laser LED | ||||||||||||||||||
| 1.4 | Typical Frame Rate: | Up to 60 fps | ||||||||||||||||||
| 1.5 | Shutter: | Global Shutter | ||||||||||||||||||
| 1.6 | Exposure | Automatic Exposure Adjustment | ||||||||||||||||||
| 1.7 | Field of View (FOV): | 35.5° × 30.2° | ||||||||||||||||||
| 1.8 | Sensor Size: | 1/4" | ||||||||||||||||||
| 1.9 | Supported Symbologies: |
1D Barcodes: 2D Barcodes: DPM Codes: |
||||||||||||||||||
| 1.10 | Typical Reading Range: |
Code39 (5 mil): 75 mm – 250 mm Code128 (3 mil): 80 mm – 150 mm Code128 (10 mil): 65 mm – 420 mm QR Code (10 mil): 75 mm – 230 mm QR Code (20 mil): 65 mm – 480 mm |
||||||||||||||||||
| 1.11 | Minimum Resolution: |
* 1D: ≥3 mil * 2D: ≥4 mil |
||||||||||||||||||
| 1.12 | Print Contrast: | ≥20% (UPC/EAN 100%, PCS ≥90%) | ||||||||||||||||||
| 2 | Wireless Specifications | |||||||||||||||||||
| 2.1 | Wireless Communication: | 2.4GHz RF + Bluetooth (supports Bluetooth 2.0, 3.0, 4.0, 4.2) | ||||||||||||||||||
| 2.2 | Wireless Range: |
* 2.4GHz RF: Up to 300 meters (line of sight with access point) * Bluetooth: Up to 20 meters (line of sight) |
||||||||||||||||||
| 2.3 | Battery Capacity: | 3200mAh (standard package includes two batteries) | ||||||||||||||||||
| 2.4 | Charging Time: | Approx. 5 hours | ||||||||||||||||||
| 2.5 | Sleep Mode: | Automatically enters standby after 3 minutes of inactivity | ||||||||||||||||||
| 2.6 | Charging Input: | 5V, 1–2A | ||||||||||||||||||
| 3 | Electrical Specifications | |||||||||||||||||||
| 3.1 | Operating Voltage: | 5 VDC±5% | ||||||||||||||||||
| 3.2 | Standby Current: | 0.6 μA | ||||||||||||||||||
| 3.3 | Operating Current: | Max 360mA ±5% | ||||||||||||||||||
| 4 | Operational Features | |||||||||||||||||||
| 4.1 | Supported Interfaces: | Standard USB, RS232 Serial Port | ||||||||||||||||||
| 4.2 | Data Transmission Modes: | USB HID (USB COM), RS232, Bluetooth (HID, SPP, BLE) | ||||||||||||||||||
| 4.3 | Notification Methods: | Buzzer, Vibration | ||||||||||||||||||
| 4.4 | Scan Modes: | Trigger Mode, Continuous Scan, Auto-sensing, Command-based Activation, etc. | ||||||||||||||||||
| 5 | Physical Specifications | |||||||||||||||||||
| 5.1 | Dimensions (L × W × H): | 198 × 74 × 105 mm | ||||||||||||||||||
| 5.2 | Weight: |
* Scanner: Approx. 346g * Base: Approx. 492g * Battery: Approx. 58g |
||||||||||||||||||
| 5.3 | Cable: |
* Length: 2 meters * Diameter: 5mm |
||||||||||||||||||
| 5.4 | Color Scheme: |
* Soft Rubber: Black * Hard Shell: Gray |
||||||||||||||||||
| 5.5 | Housing Materials: |
* Soft Rubber: TPU * Hard Plastic: ABS |
||||||||||||||||||
